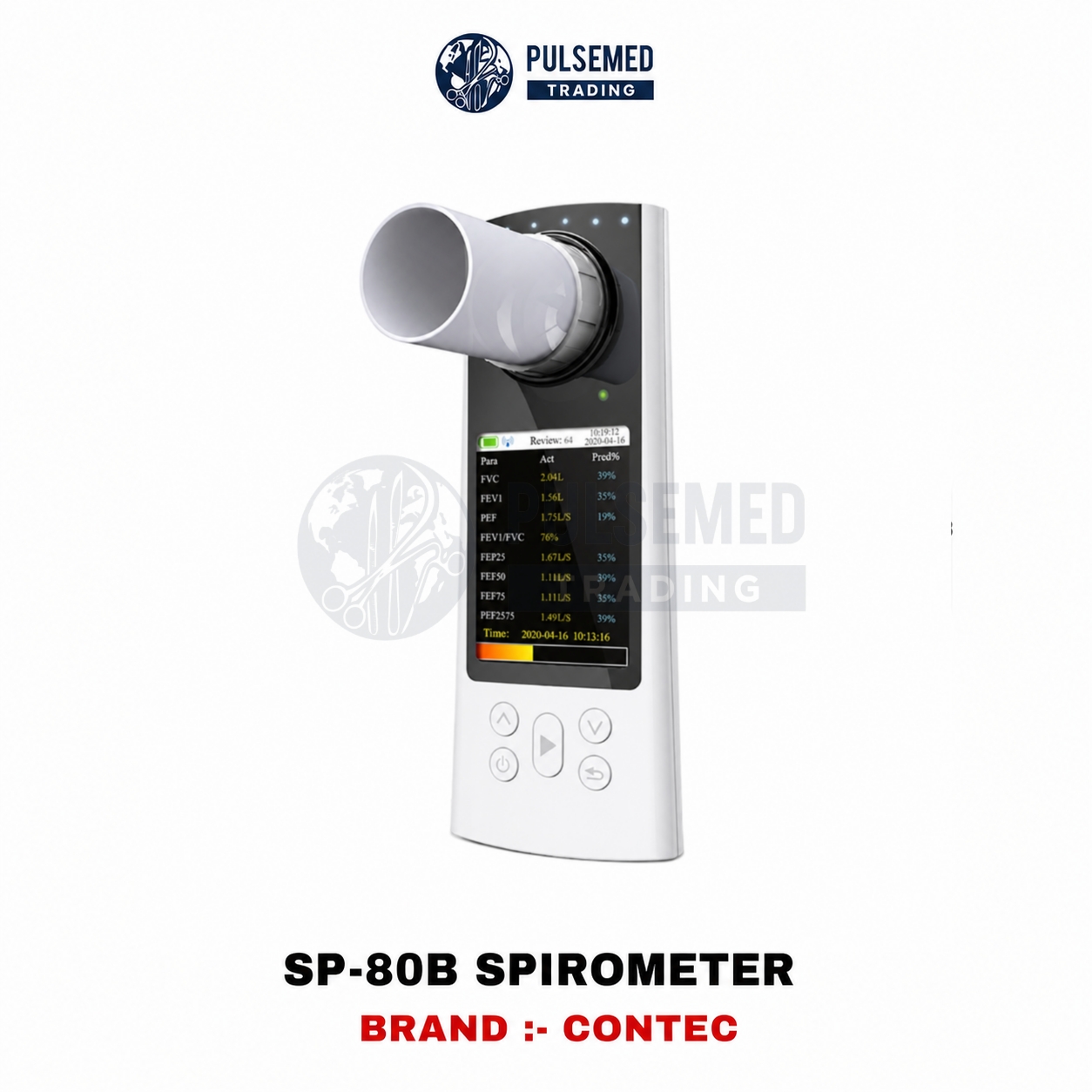

Featuring a vibrant color LCD display, intuitive one-touch operation, and comprehensive pulmonary parameter analysis, the SP-80B helps healthcare professionals diagnose, evaluate, and monitor respiratory conditions such as asthma, COPD, chronic bronchitis, and other pulmonary diseases. Its built-in memory, graphical result display, and PC connectivity simplify patient data management and improve clinical workflow.
Whether used for routine respiratory screening or long-term disease monitoring, the CONTEC SP-80B offers dependable performance, user-friendly operation, and exceptional portability, making it a trusted choice for modern respiratory care.
Key Features
- Compact, lightweight, and portable design
- Advanced infrared sensing technology for high-precision measurements
- Large 2.8-inch color LCD display
- Easy one-button operation
- Fast and accurate pulmonary function testing
- Measures multiple respiratory parameters
- Flow-Volume and Volume-Time curve display
- Built-in patient database with memory storage
- Health status evaluation and automatic interpretation
- USB and Bluetooth connectivity for data transfer (model dependent)
- PC software support for report generation and analysis
- Rechargeable lithium battery with long operating time
- Automatic power-off for battery saving
- Calibration function for consistent accuracy
- Suitable for both adults and pediatric patients
Pulmonary Parameters
The CONTEC SP-80B measures a comprehensive range of pulmonary function parameters, including:
- Forced Vital Capacity (FVC)
- Forced Expiratory Volume in 1 Second (FEV1)
- FEV1/FVC Ratio
- Peak Expiratory Flow (PEF)
- Forced Expiratory Flow at 25% (FEF25)
- Forced Expiratory Flow at 50% (FEF50)
- Forced Expiratory Flow at 75% (FEF75)
- Forced Expiratory Flow 25–75% (FEF25–75)
- Maximum Voluntary Ventilation (MVV) (where applicable)
Applications
The CONTEC SP-80B is widely used for:
- Pulmonary Function Testing (PFT)
- Asthma Diagnosis and Monitoring
- COPD Assessment
- Respiratory Disease Screening
- Occupational Health Examinations
- Pre-operative Lung Function Evaluation
- Annual Health Check-ups
- Smoking-related Lung Assessment
- Pulmonary Rehabilitation
- Home Healthcare Monitoring
Technical Specifications
| Feature | Specification |
|---|---|
| Display | 2.8-inch Color LCD |
| Measurement Principle | Infrared Sensor Technology |
| Volume Range | 0–10 L |
| Flow Range | 0–16 L/s |
| Volume Accuracy | ±3% or ±0.05 L |
| Flow Accuracy | ±5% or ±0.2 L/s |
| Data Storage | Built-in Memory |
| Connectivity | USB / Bluetooth (Optional) |
| Battery | Rechargeable Lithium Battery |
| Weight | Approx. 190 g |
| Dimensions | 160 × 65 × 45 mm |
Package Contents
- CONTEC SP-80B Spirometer
- Disposable Mouthpieces
- USB Data Cable
- Rechargeable Battery
- User Manual
- PC Software (where applicable)
- Carrying Case (optional)
Why Choose CONTEC SP-80B?
- High measurement accuracy
- Easy-to-use interface
- Portable and travel-friendly design
- Fast test results with graphical analysis
- Reliable patient data storage
- Professional-quality pulmonary diagnostics
- Ideal for hospitals, clinics, and diagnostic laboratories
- Trusted CONTEC quality and performance
