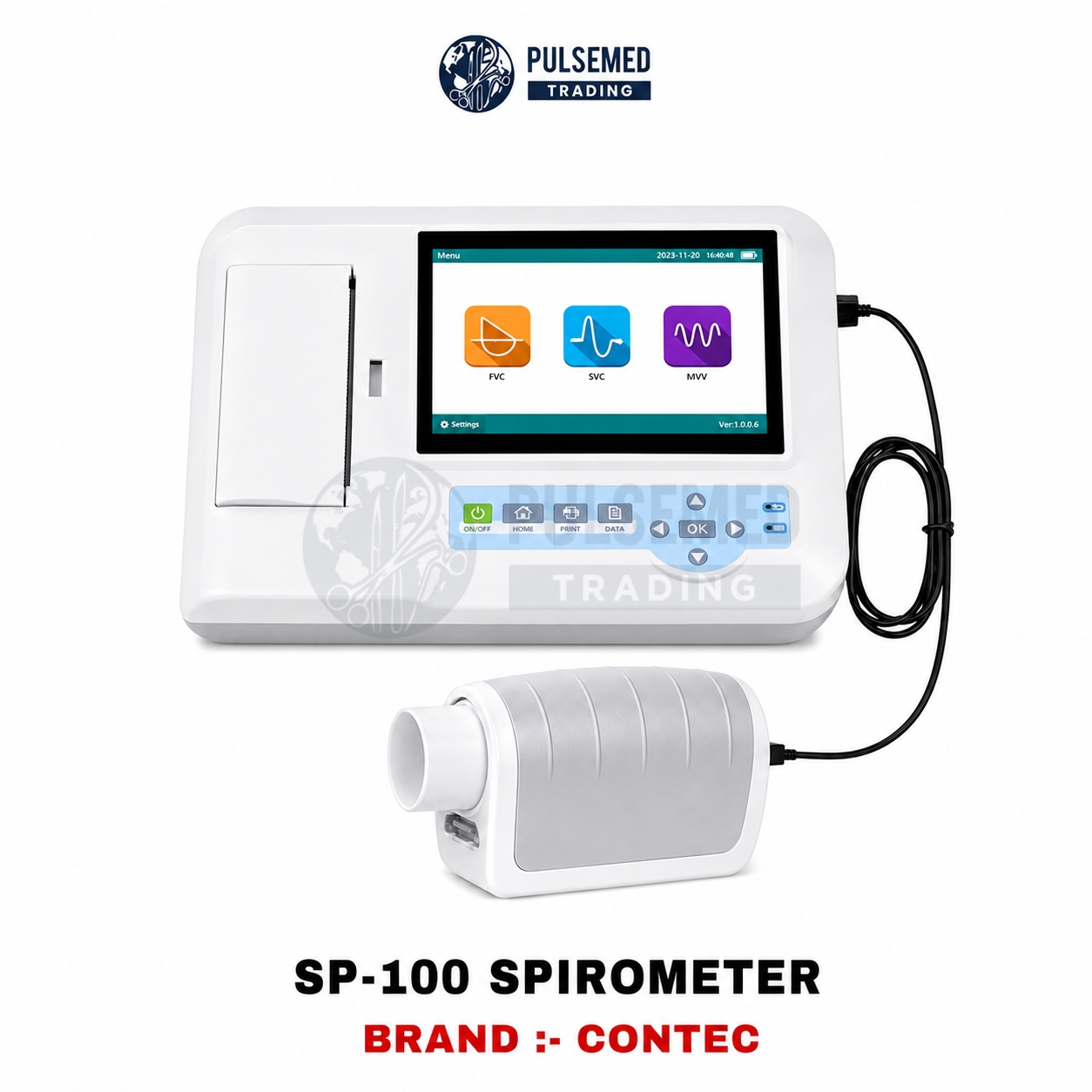

CONTEC SP-100

Respiratory diseases such as asthma, chronic obstructive pulmonary disease (COPD), bronchitis, emphysema, pulmonary fibrosis, and other lung disorders require accurate diagnosis and continuous monitoring. The CONTEC SP-100 is specifically designed to support physicians, pulmonologists, and respiratory therapists by providing reliable pulmonary function analysis for early detection, treatment planning, and long-term disease management.

Featuring a large 7-inch color touchscreen display, the SP-100 offers an intuitive user interface that simplifies pulmonary testing while displaying real-time respiratory curves and graphical analysis. The device performs complete pulmonary function tests with rapid measurement speed, allowing clinicians to efficiently assess patient respiratory health in busy clinical environments.

The system measures more than 50 pulmonary function parameters, including Forced Vital Capacity (FVC), Slow Vital Capacity (SVC/VC), Maximum Voluntary Ventilation (MVV), Forced Expiratory Volume in One Second (FEV1), Peak Expiratory Flow (PEF), Forced Expiratory Flow (FEF25–75), Flow-Volume Loop, Volume-Time Curve, and numerous additional respiratory indices. These comprehensive measurements help healthcare professionals accurately identify obstructive and restrictive lung diseases while monitoring disease progression and treatment effectiveness.

To ensure highly accurate results, the CONTEC SP-100 includes automatic BTPS correction, environmental compensation, calibration functions, and intelligent quality control features. The system automatically evaluates test quality and selects the best result from multiple examinations, reducing operator variability and improving diagnostic confidence.

The built-in thermal printer allows immediate printing of professional patient reports directly after testing. With large internal memory capable of storing thousands of patient records, clinicians can efficiently manage patient history, perform long-term follow-up, and review previous examinations whenever required. USB connectivity enables seamless transfer of patient data to computers for record management, analysis, and report archiving.

Its compact desktop design, rechargeable battery support, and durable construction make the CONTEC SP-100 suitable for both fixed clinical installations and mobile healthcare services. Whether performing routine health examinations, occupational health assessments, pre-operative evaluations, respiratory screening, or clinical research, the SP-100 delivers dependable performance and professional-grade pulmonary diagnostics.

The combination of advanced measurement technology, intelligent software, user-friendly operation, real-time graphical analysis, integrated reporting, and comprehensive respiratory assessment makes the CONTEC SP-100 one of the most reliable pulmonary function testing systems for modern healthcare facilities.

Key Features

• Advanced differential pressure sensing technology
• Comprehensive pulmonary function testing
• Measures more than 50 respiratory parameters
• FVC, VC/SVC, MVV, FEV1, FEV1/FVC, PEF, FEF25–75 and many more
• Real-time Flow-Volume and Volume-Time curves
• 7-inch high-resolution color TFT touchscreen
• Automatic BTPS environmental correction
• Intelligent quality control system
• Automatic best-value selection
• Built-in thermal printer
• Internal storage for over 10,000 patient records
• USB data communication
• Rechargeable lithium battery
• Fast testing with high accuracy
• Easy-to-use graphical interface
• Suitable for adult and pediatric patients
• Compact and portable desktop design

Clinical Applications

The CONTEC SP-100 Spirometer is suitable for:

• Pulmonology Departments
• Multi-Specialty Hospitals
• General Hospitals
• Diagnostic Centers
• Chest Physicians
• Respiratory Clinics
• Occupational Health Screening
• Corporate Health Check-up Programs
• Community Health Camps
• Medical Colleges
• Research Institutes
• Home Healthcare Services
• Pre-operative Assessment
• Smoking Cessation Programs
• Annual Health Screening

Technical Specifications

Specification	Details
Product Name	CONTEC SP-100 Spirometer
Display	7-inch Color TFT Touchscreen
Measurement Technology	Differential Pressure Sensor
Volume Range	0–10 L
Flow Range	0–16 L/s
Volume Accuracy	±3% or ±0.05 L
Flow Accuracy	±5% or ±0.2 L/s
Test Types	FVC, VC/SVC, MVV
Pulmonary Parameters	50+
Printer	Built-in Thermal Printer
Memory	10,000+ Patient Records
Connectivity	USB
Power Supply	AC Adapter & Rechargeable Battery
Patient Type	Adult & Pediatric
Application	Clinical & Diagnostic Use

Why Choose the CONTEC SP-100 Spirometer?

Choosing the CONTEC SP-100 Spirometer means investing in a reliable, accurate, and user-friendly pulmonary function testing solution trusted by healthcare professionals. Designed to meet the demands of modern clinical environments, the SP-100 combines advanced diagnostic technology with intuitive operation, making it an excellent choice for hospitals, clinics, diagnostic centers, and occupational health facilities.
